Tools.h File Reference

#include <Math/Vector3D.h>
#include <Math/Vector4D.h>
#include <optional>

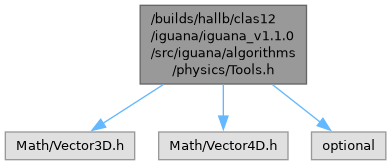

Include dependency graph for Tools.h:

Go to the source code of this file.

Namespaces
namespace	iguana::physics
	Physics algorithms.
namespace	iguana::physics::tools
	physics tools

Functions
double	iguana::physics::tools::AdjustAnglePi (double ang)
	shift angle to the range \((-\pi,+\pi]\)
double	iguana::physics::tools::AdjustAngleTwoPi (double ang)
	shift angle to the range \((0,2\pi]\)
template<typename MOMENTUM_TYPE, typename AXIS_TYPE>
std::optional< double >	iguana::physics::tools::ParticleRapidity (MOMENTUM_TYPE const &momentum_vec, AXIS_TYPE const &axis_vec)
	calculate the rapidity of a particle, relative to an axis
std::optional< double >	iguana::physics::tools::PlaneAngle (ROOT::Math::XYZVector const v_a, ROOT::Math::XYZVector const v_b, ROOT::Math::XYZVector const v_c, ROOT::Math::XYZVector const v_d)
	calculate the angle between two planes
std::optional< ROOT::Math::XYZVector >	iguana::physics::tools::ProjectVector (ROOT::Math::XYZVector const v_a, ROOT::Math::XYZVector const v_b)
	projection of one vector onto another
std::optional< ROOT::Math::XYZVector >	iguana::physics::tools::RejectVector (ROOT::Math::XYZVector const v_a, ROOT::Math::XYZVector const v_b)
	projection of one vector onto the plane transverse to another vector
std::optional< double >	iguana::physics::tools::VectorAngle (ROOT::Math::XYZVector const v_a, ROOT::Math::XYZVector const v_b)
	calculate the angle between two vectors

Variables
double const	iguana::physics::tools::UNDEF {-10000}
	a value used when some calculation fails
